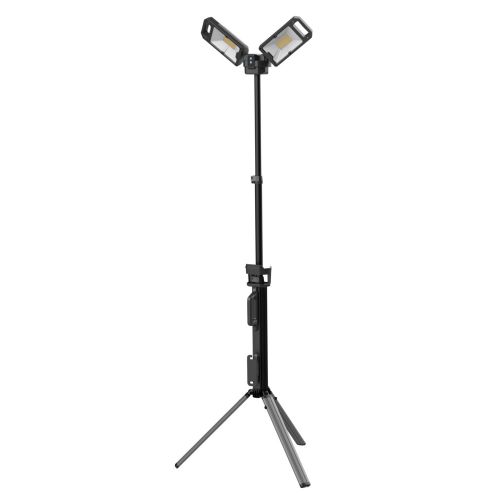

Worklight Tripod Twin Head Worklight WL5000R rechargeablewired

Double LED spotlight (2× 30W) with integrated stand for battery and mains operation

Please login to see price

More Information
Part number 1600-0503
EAN code 4013674189748
Product content LED worklight, charging power supply, operating instructions
Packaging unit pieces 1 Pieces
Product weight 4.734 kg
Dimensions 89.2 × 12 × 12 cm
Warranty 2 years

The ideal companion for your projects - the all-rounder

The WL5000R is a professional spotlight with SMD LED technology. The light integrates effortlessly into the demanding daily routine for work in and around the house, in workshops, construction sites, industry, home, garden, yard or garage.
The compact dimensions when folded make the Worklight easy to transport. With the integrated and fold-out feet as well as the telescopic function, a tripod is practically included. A cable rewind is also possible at the foot. The integrated earth spikes in the respective feet are also useful on unpaved surfaces.

Powerful luminosity in two light colours

Thanks to the use of two universally rotatable LED modules with powerful SMD LED technology, the luminaire produces an intense light. The luminaire achieves a brightness of up to 5000 lm. Thanks to the wide beam angle, the bright light is evenly distributed so that small details as well as large areas are homogeneously illuminated.
The light of the LEDs can be set to two different colour temperatures: 4000K for a warmer light colour, 6500K for a whiter light. This means pleasant and relaxed working with the respective light colour.

Robust, shockproof and splashproof

The robust and shockproof housing is particularly resistant to mechanical stress (IK07). In battery mode, the spotlight is splash-proof thanks to protection type IPX4, so you can concentrate fully on your work with optimum illumination indoors and outdoors.

Strong technical values

The Worklight is powered by a Li-Ion battery pack with 4000 mAh. This means that the LED spotlight can be used anywhere and at any time. The work light lasts 1 hour in 100% mode, 2.5 hours in 30% mode and 5 hours in 10% mode. Whether mobile or at home, with the Tripod Twin Head Worklight WL5000R you always have the right spotlight to bring light into the dark!
Mains operation is also possible with the included charger.

Immediately ready for use

The SMD LEDs need less than 1 second of start-up time to provide full power. Thus, the light provides full power immediately.

Instructions for use

This lamp is designed for mobile use, the included LED lamp is not replaceable and not suitable for household room illumination.

More Information
Power supply rechargeable, wired
Lamp life > 10.000h
Light modes
  • High/Medium/Low Power (battery)
  • Mains operation
Colour temperature 6500 K
IK Protection Class IK07
Protection class IPX4
Color black, grey
Packaging box
Storage temperature -5 - 35 °C
Operating temperature 0 - 25 °C
Housing material Aluminium, ABS, PCS, Nylon, Fiberglass

Performance data

ModeMaximum light rangeMaximum luminous fluxMaximum brightnessMaximum operating time
High Power (battery)90 m5.000 lumens2.600 Lux1 hrs.
Medium Power (battery)50 m1.500 lumens680 Lux2,5 hrs.
Low Power (battery)25 m500 lumens200 Lux5 hrs.
Mains operation57 m1.700 lumens1.160 Lux
LED worklight, charging power supply, operating instructions
