APS 12-2.5, manual

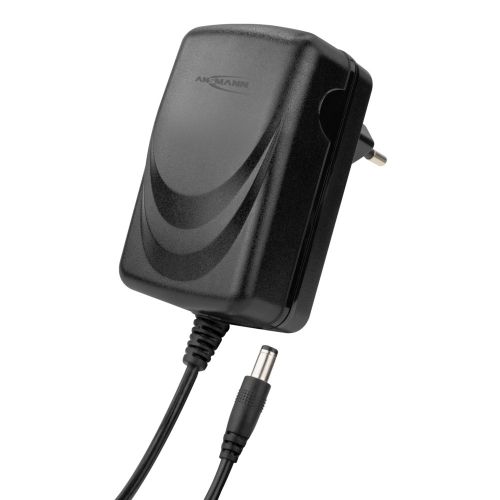

APS 12-2.5
Router-Netzteil APS 12-2.5, 12 V DC - kompatibel mit Fritz-Box 7590 / 7570 / 7530 / 7490 / 7430 / 7390 / 7360 / 7330 / 7270 / 7170 / 6660 / 6490 / 6340 / 4040 / 4020 / 3270 / 3170
| Part number | 1201-0027 |
|---|---|
| EAN code | 4013674186327 |
| Product content | APS 12-2.5, manual |
| Packaging unit pieces | 45 Pieces |
| Product weight | 0.168 kg |
| Dimensions | 8.1 × 5 × 3.1 cm |
| Warranty | 3 years |
Mains power supply unit for a wide range of routers
The high-quality ANSMANN APS 12-2.5 is a replacement power supply and compatible with selected Fritz!Box WLAN routers and other models/applications with the same output voltage and maximum output power as well as matching DC power plug. The power supply operates in the voltage range of 100-240V, has an output voltage of 12V DC and offers an output power of up to 30W (max. 2.5A). So, your router is reliably supplied with sufficient power.
The power supply unit is equipped with a 150cm long secondary cable with a DC power plug whose outer diameter is 5.5mm and inner diameter 2.5mm (polarity + inner).
| Input voltage | 100 - 240V AC |
|---|---|
| Voltage range | 12 V DC |
| Maximum power | 30 W |
| Functions | Overcurrent protection, Overvoltage protection, Short circuit protection |
| Cable length | 150 cm |
| Average operational efficiency | 87,0 % |
| Efficiency at low load | 75,0 % |
| Power consumption at no load | 0,100 W |
| Color | black |
